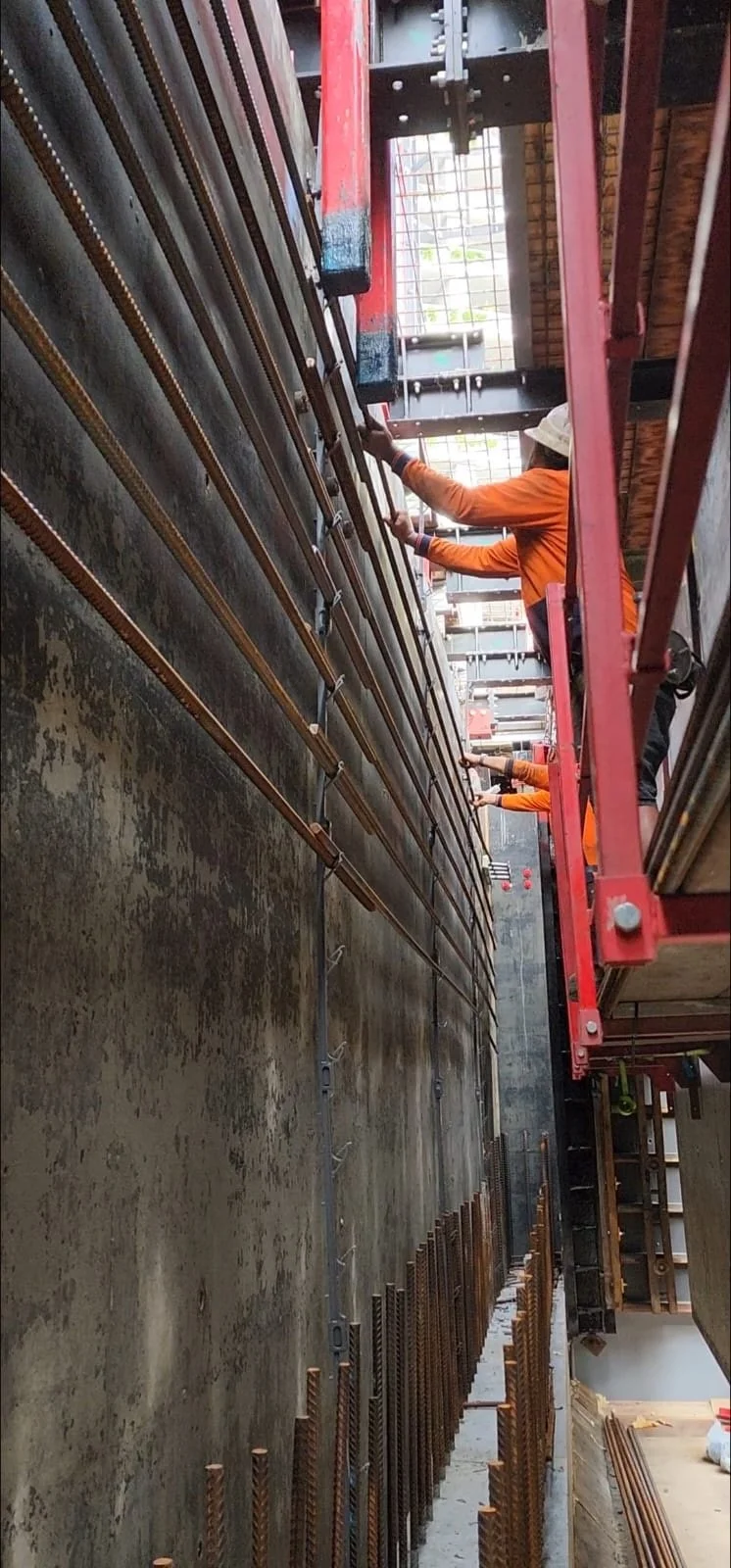

The J-Bar wall mounting clips are secured directly to the wall formwork above the concrete pour height during the initial wall set-out stage. This allows the clips to remain in position and be reused throughout subsequent construction cycles, eliminating the need for repeated set-out and improving installation efficiency.

Once installed, the system provides a consistent and accurate framework for reinforcement placement, enabling faster steel fixing while maintaining engineered reinforcement spacing and concrete cover requirements.

Step 1 – Set Out

Fix the J-Bar to the wall reinforcement set-out locations.

Step 2 – Install Chairs

Attach reinforcement chairs to maintain required concrete cover.

Step 3 – Position Reinforcement

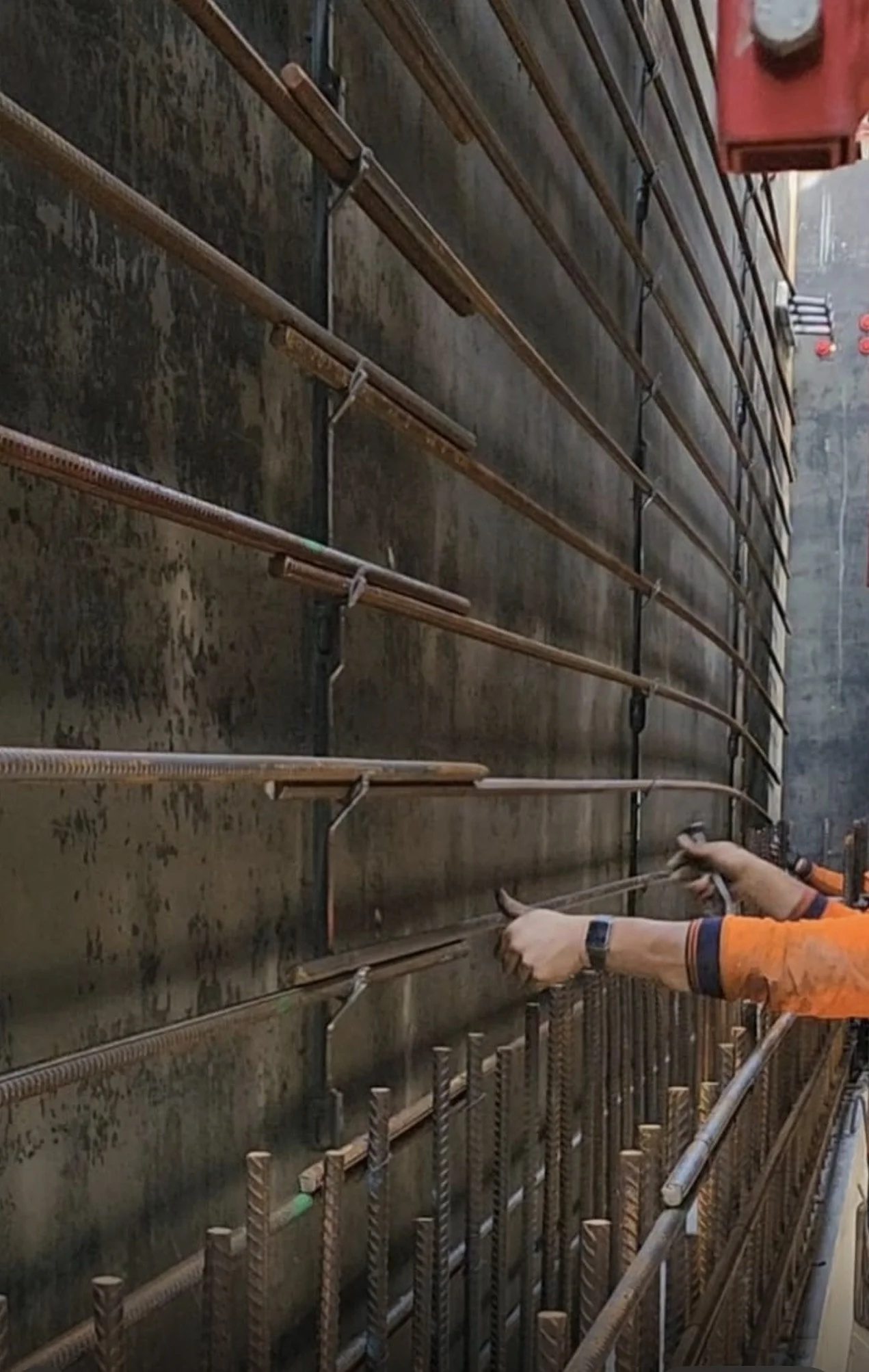

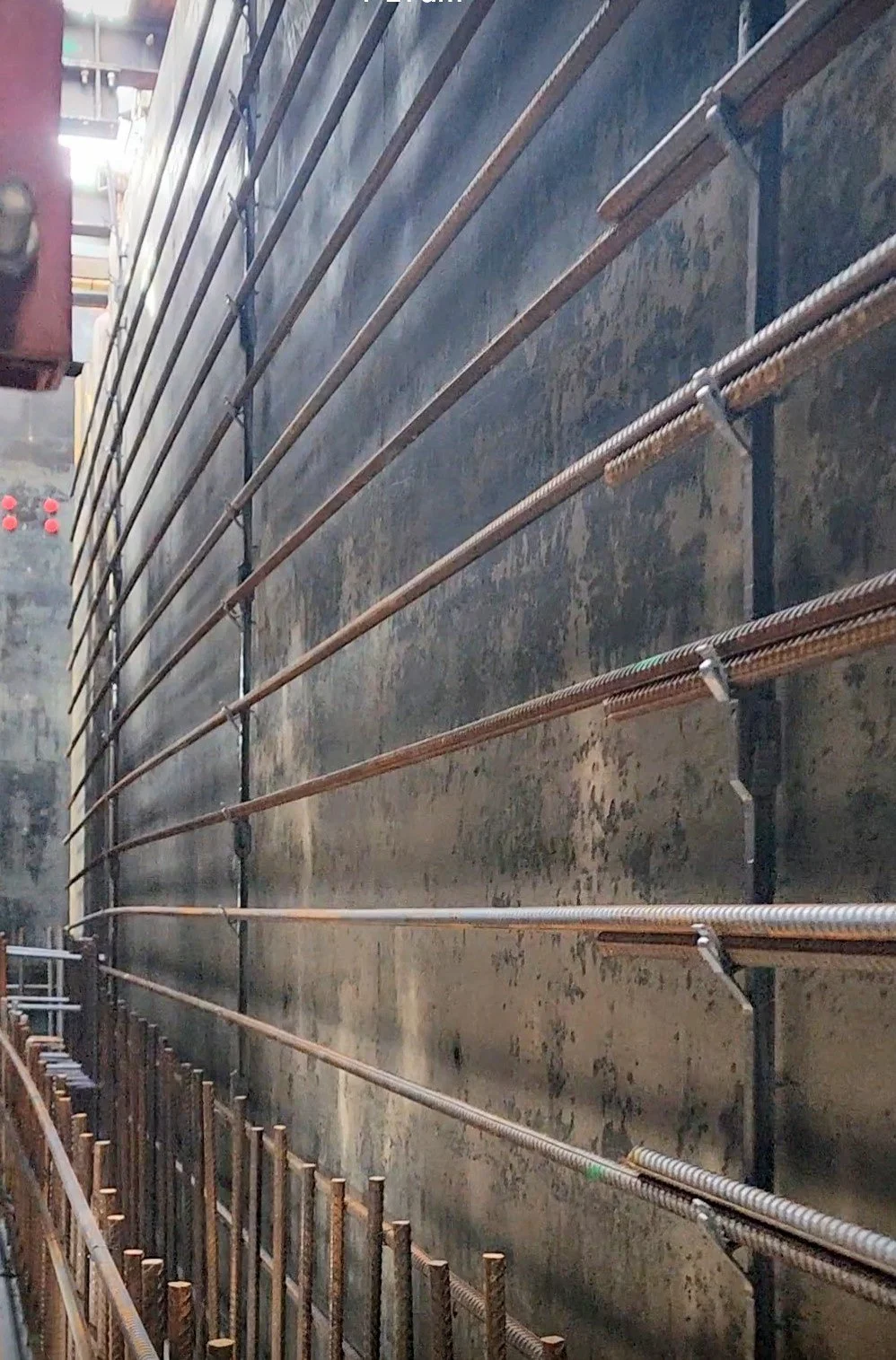

Place horizontal reinforcement bars into the engineered notch locations.

Step 4 – Complete Steel Fixing

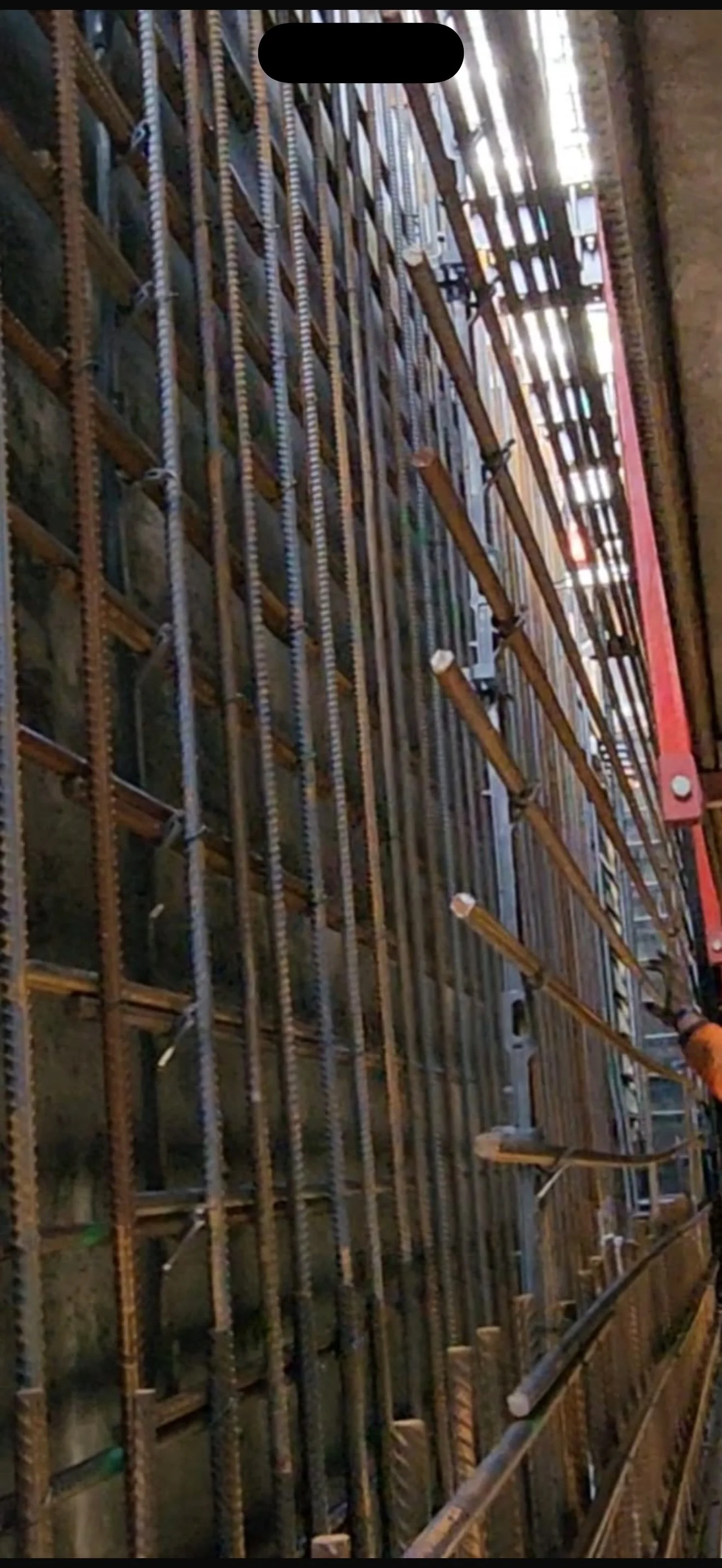

Install remaining reinforcement and tie bars as specified by the engineer.

Step 5 – Inspection & Formwork

Complete engineer inspection and proceed directly to formwork installation.

The J-Bar system is ideal for:

• Core walls
• Lift shafts
• Shear walls
• Basement structures
• High-rise construction
• Commercial developments
• Civil and infrastructure projects
• Reinforced concrete wall systems

The J-Bar system is designed to support accurate reinforcement placement, consistent bar spacing, and concrete cover requirements in accordance with project specifications.

By providing predetermined reinforcement centres, the system assists in reducing installation errors, improving quality control, and supporting engineer compliance inspections. The result is a more consistent reinforcement cage with reduced rectification and improved project outcomes.
